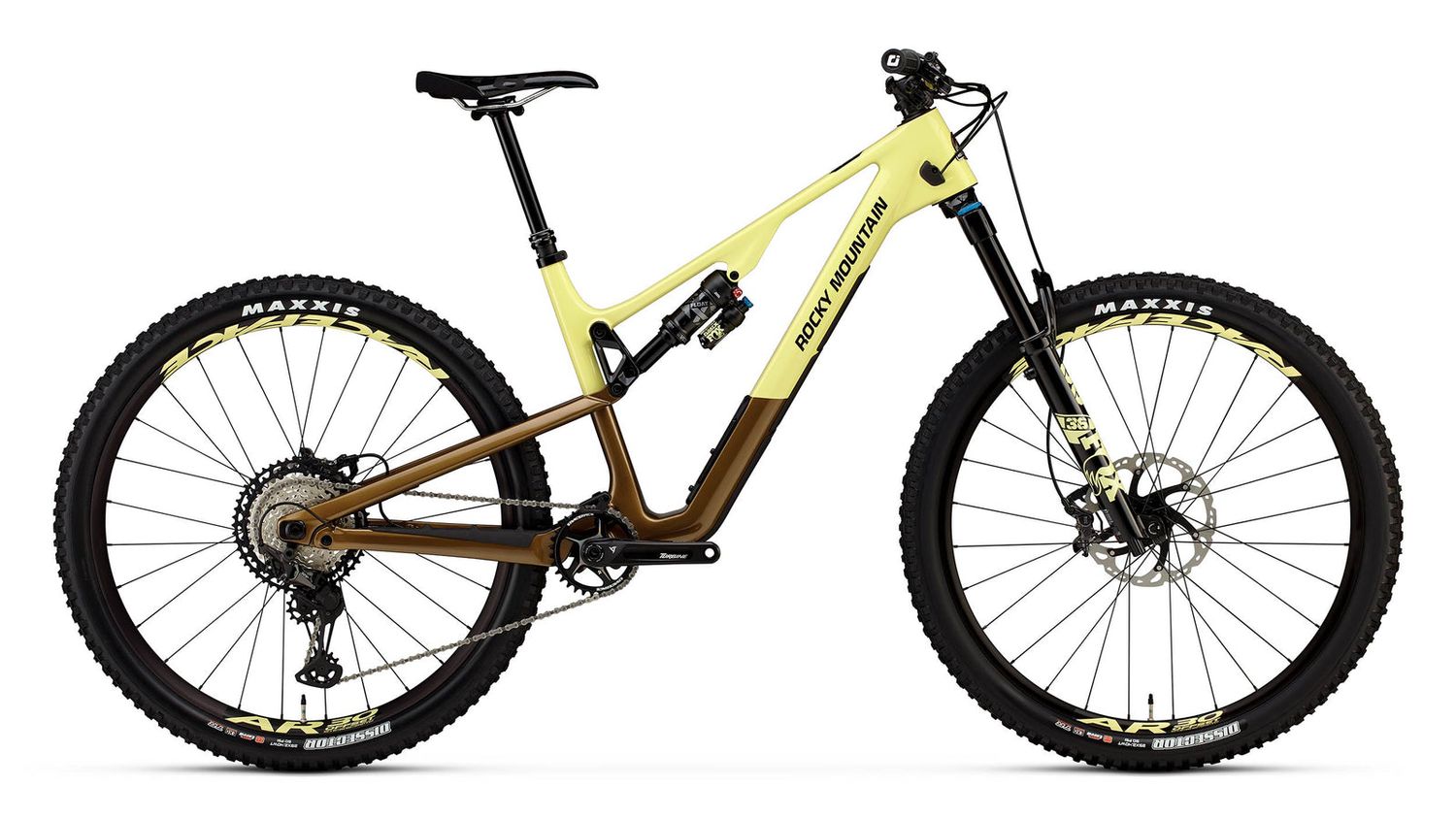

All-mountain bikes are great at many things. From steep climbs to fast and fun descents, these bikes are capable of conquering a wide variety of trail obstacles with ease. The Rocky Mountain Instinct is what many would call a "quiver killer" and is designed to thrive on technical trails. The SMOOTHWALL Carbon Frame uses 140mm of travel on the rear and 150mm of travel on the front. Smoothlink suspension aims to provide maximum traction and comfort in all situations and features a tuned blend of anti-squat and rate curves that is efficient yet supple. The frame also features RIDE-4 adjustable geometry, a two-position axle, a size-specific tune, internal cable routing, and integrated frame protection.
The C70 version of the Rocky Mountain Instinct comes with a Shimano XT 12-speed drivetrain. With a 32T chainring up front and a 10-51T cassette on the rear, you'll have no issues climbing steep hills or pedaling through difficult terrain. Shimano XT Trail 4-piston hydraulic disc brakes provide excellent stopping power so you can descend with confidence. Race Face AR 30 tubeless rims are paired with Maxxis Dissector tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the Race Face Turbine R dropper seatpost, you'll be able to quickly lift and lower your saddle with the press of a lever so you can climb efficiently or descend with a lower center of gravity.
SMOOTHWALL Carbon
Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
RIDE-4 adjustment system
The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a pair of Allen keys. Four configurations are possible thanks to one rotating chip.
SMOOTHLINK suspension
Smoothlink suspension is efficient yet supple when you’re on the pedals and across a wide range of gears. It features a controlled end-stroke and a rate-curve that feels more capable than the travel would suggest.
PenaltyBox 2.0
The new PenaltyBox 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.
Reach Adjust Headsets
Fine tune your ride with center, +/- 5mm offset options.
Two-positions axle
Two Altitude and Instinct frames, in both alloy and carbon, are equipped with a two-position axle dropout.
Size Specific Tune
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.
Frame |
SMOOTHWALL Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4 Adjustable Geometry | 2 Position Axle | 140mm Travel | SMOOTHWALL Carbon Rear Triangle |
---|---|
Fork |
Fox 36 Float EVOL GRIP2 Performance Elite Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Front travel: 150mm
|
Rear Shock |
Fox Float X Performance Elite | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm
Rear travel: 140mm
|
Headset |
FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
|
Stem |
Rocky Mountain 35 AM | 5° Rise | 40mm Length
|
Handlebar |
Rocky Mountain AM Carbon 780mm
|
Grips |
ODI Elite Pro Lock On
|
Brakes |
Shimano XT Trail 4 Piston | Metal Pads |
Shifters |
Shimano XT
|
Rear derailleur |
Shimano XT
|
Cranks & chainrings |
Race Face Turbine Cinch | 32T | 30mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
Bottom Bracket |
Race Face BB92 30mm |
Cassette |
Shimano XT 10-51T
|
Chain | Shimano M8100 |
Front Hub
|
Rocky Mountain Sealed Boost 15mm
|
Rear Hub |
DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet
|
Spokes |
DT Swiss Competition 2.0/1.8/2.0
|
Rims |
Race Face AR 30 | 32H | Tubeless Ready - Tape | Valves Incl |
Tires |
Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready |
Seatpost |
Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm |
Saddle |
WTB Volt Race 142
|
Color |
We are the Champions / Platinum Blonde / Black Dog
|
Weight |
30.9 lbs | 14.00 kg |
