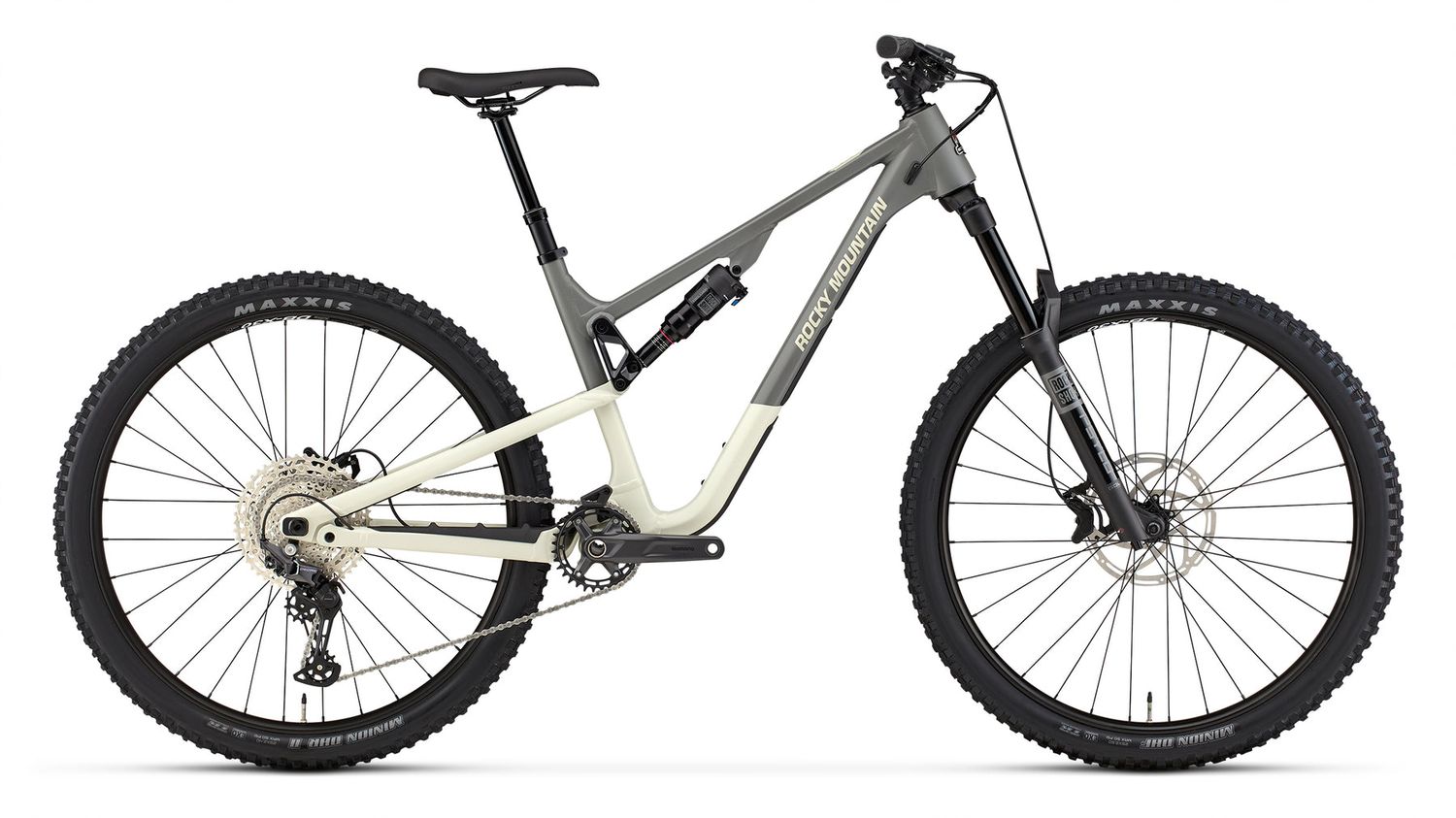

Trail bikes are best described as a bike that can do it all. They are perfect for climbing steep hills and descending technical terrain with ease. The Rocky Mountain Instinct has a FORM Alloy frame that uses 160mm of travel on the front and 145mm of travel on the rear. The frame features RIDE-4 adjustable geometry so you can dial in your ride for the terrain you ride on. The frame also comes with 2-bolt ISCG-05 tabs, internal cable routing, and integrated frame protection.
The A30 version of the Rocky Mountain Instinct comes with a Shimano Deore 12-speed drivetrain. This includes a cassette that has a hill-crushing 10-51T gear range that makes climbing and pedaling through difficult terrain much easier. Tektro HD-M535 4-Piston hydraulic disc brakes provide reliable stopping power so you can descend under control. Rocky Mountain TR30 Tubeless rims are paired with Maxxis Minion tires. The rims can be set up tubeless with the proper tires for a smoother ride, better traction, and fewer flats.
SPECS
| Frame |
FORM Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4 Adjustable Geometry | 2 Position Axle | SM - XL = 145mm | XS = 140mm | FORM Alloy Rear Triangle
|
|---|---|
| Fork |
RockShox Psylo Gold RC 160mm | 27.5 = 37mm Offset | 29 = 42mm Offset
Front travel: 160mm
|
| Shock |
RockShox Deluxe Select+ | Linear XL Air Can | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x55mm
Rear travel: 145mm
|
| Headset |
FSA ZS56|66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
|
| Stem |
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm |
| Handlebar |
Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 31.8mm Clamp |
| Grips |
Rocky Mountain Lock On Ergo |
| Brakes |
Tektro HD-M535 | Shimano Pad Compatible |
| Shifters |
Shimano Deore 12sp
|
| Rear derailleur |
Shimano Deore 12sp
|
| Cranks & chainrings |
Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm
|
| Bottom Bracket | Shimano SM-BBMT500 |
| Cassette |
Shimano Deore 10-51T
|
| Chain | Shimano M6100 |
|
Front Hub
|
Shimano TC500 | 15mm Boost
|
| Rear Hub |
Shimano TC500 Boost 148mm
|
| Spokes |
2.0 Stainless
|
| Rims |
Rocky Mountain TR30 | 32H
|
| Tires |
F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready |
| Seatpost |
Tranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy Clamp Lever | 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm
|
| Saddle |
WTB Volt 142 | Steel Rails
|
| Color |
Smokin' in the Boys Room / Bad to the Bone
|
| Weight | N/A |
