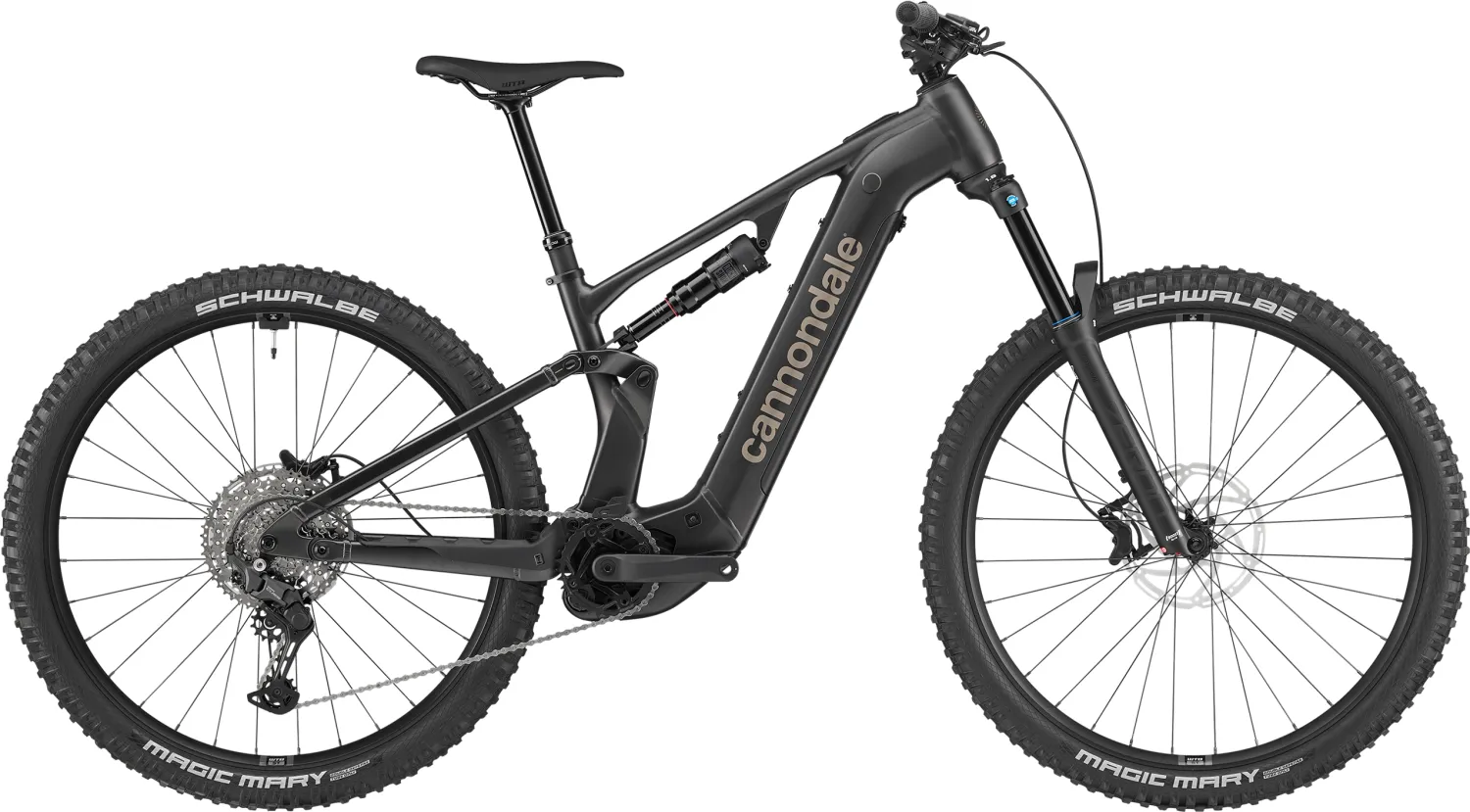

Moterra 4+ is built for big days. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and largest 800Wh battery deliver smooth, sustained power with massive range. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.
FEATURES
SPECS
| Drive unit | Bosch Performance Line CX |
| Battery | Bosch PowerTube, 800Wh |
| Charger | Bosch 4A |
| Display | Bosch LED Remote |
| Frame |
Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts |
|---|---|
| Fork |
SR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Rear shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Stem |
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
| Handlebar |
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Grips |
Cannondale TaperRidge |
| Brakes |
Tektro Gemini SL 4-piston hydraulic disc, 203mm rotors |
| Brake levers | Tektro Gemini SL hydraulic disc |
| Shift levers |
Shimano CUES U6000, 11-speed, LinkGlide |
| Rear derailleur |
Shimano CUES U6000, LinkGlide |
| Cranks & chainrings |
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Cassette |
Shimano CUES LG400, LinkGlide, 11-50, 11-speed |
| Chain |
Shimano LG500, LinkGlide, 11-speed |
| Rims |
WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible |
| Hubs | F: Shimano TC500, 15x110mm thru-axle
R: Shimano TC500, 12x148mm thru-axle, centerlock |
| Spokes | DT Swiss Champion 2.0 |
| Tires | Schwalbe Magic Mary Performance, 29x2.4", Addix Foldable, Tube |
| Seatpost |
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Saddle |
WTB Silverado Medium |
| Extra 1 | Bosch PowerMore range extender compatible |
| Condition | PREOWNED |
| Color |
Obsidian |
