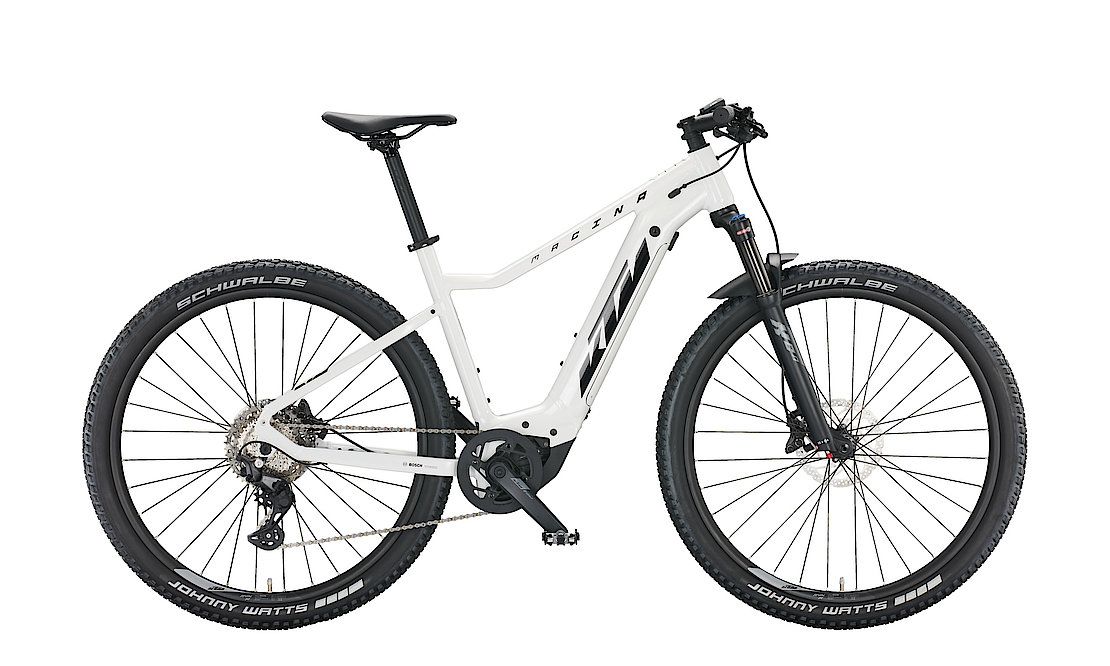

The KTM Macina Race 591 features a 29-inch aluminum frame and solid equipment, such as a Shimano drivetrain and hydraulic disc brakes, Schwalbe Johnny Watts tires and ergonomic KTM saddle and grips. With a suspension travel of 100 mm and the powerful Bosch Performance Line CX Power you master even the steepest climbs and the toughest trails. Sporty design and a high level of integration ensure an eye-catching look.
FEATURES
Motor |
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm |
---|---|
Battery | Bosch PowerTUBE 500Wh hor. |
UI/Remote | Bosch PURION LCD Display |
Charger |
Bosch COMPACT Charger 2A |
Remote | N/A |
Frame |
Macina MTB 29" Alloy6061 | PT500Wh Bosch Gen.4 / M-1776 |
---|---|
Fork |
Suntour XCR 34 Air 29" LOR 100mm | 15x110 taper
Front travel: 100mm
|
Headset |
KTM Team drop/in 1.1/8"-1.5" |
Stem |
KTM Comp 7° |
Handlebar |
KTM Comp flat 2X 720mm |
Grips |
KTM Comp Lock |
Brakes |
Shimano MT401 / MT420 4-Piston | Shimano RT30 CL 180 / EM300 CL 180 |
Shifters |
|
Rear derailleur |
Shimano Deore M5130-10 LG shadow+ |
Cranks & chainrings |
KTM COMP ISIS 170mm Q16
FSA Megatooth steel 38T w/ Chainguard |
Cassette |
Shimano LG600-10 / 11-43 |
Chain | Shimano LG500 |
Front wheel
|
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black |
Rear wheel |
KTM Line - Shimano MT400B CL 32H 148-12TA / Ryde Rival30 32H 622x30C / DT Alpine II 2.34 black |
Tires | Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 |
Seatpost |
KTM Comp 30.9/400 |
Saddle |
KTM Line Sport |
Pedals | MTB-Pedal VP-195E alloy |
Color |
Metallic White
|
Weight |
22.8 kg (50.26 lbs) |
Permissible total weight | 142 kg (313 kg) |
