FEATURES

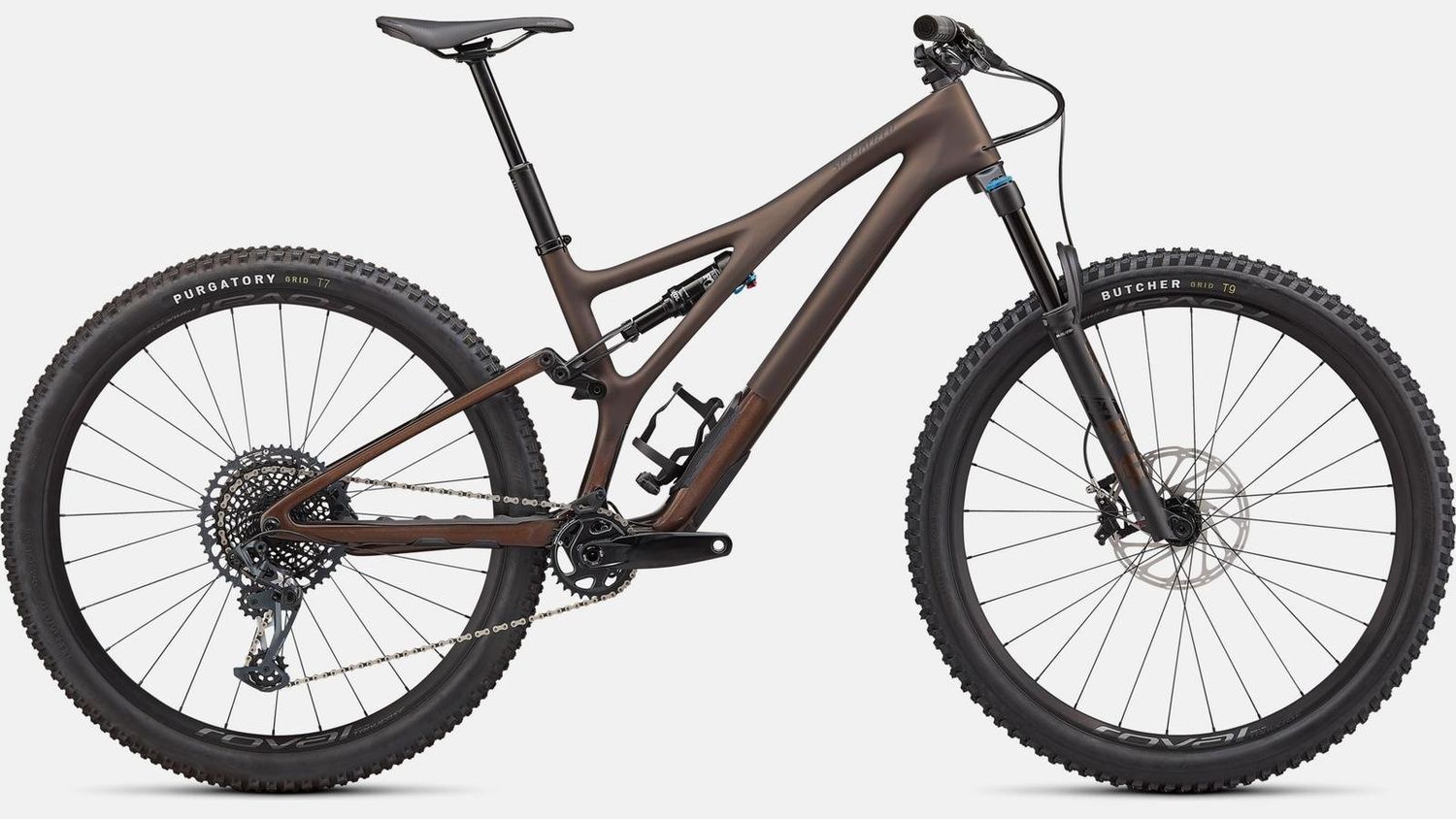

When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design.
SPECIFICATIONS
Frame | FACT 11m carbon chassis and rear-end | asymmetrical design | 29 Trail Geometry | SWAT Door integration | flip chip Head Tube/Bottom Bracket adjustment | threaded BB | fully enclosed internal cable routing | 12x148mm dropouts | sealed cartridge bearing pivots | replaceable derailleur hanger | 130mm of travel |
---|---|
Fork | FOX FLOAT 34 Performance Elite | GRIP2 damper | 15x110mm axle | 44mm offset | 140mm of travel |
Shock | FOX FLOAT DPS Performance Elite | Rx Trail Tune | EVOL Air sleeve | 3-position adjustment w/ Open Mode Adjustment | 190x45mm |
Stem | Alloy Trail Stem | 35mm bar bore |
Handlebar | Specialized Trail | 7050 alloy | 8-degree backsweep | 6-degree upsweep | 30mm rise | 780mm | 35mm clamp |
Grips | Deity Knuckleduster Black |
Brakes |
F: SRAM G2 RSC | 4-piston caliper | hydraulic disc | 200mm
R: SRAM G2 RSC | 4-piston caliper | hydraulic disc | 180mm
|
Shifters | SRAM X01 Eagle 12-speed | trigger |
Rear derailleur | SRAM X01 Eagle 12-speed |
Cranks & chainrings |
SRAM Descendant 7K | DUB | S1:165mm | S2-S5: 170mm | S6: 175mm Alloy 30T
|
Bottom Bracket |
SRAM DUB | BSA 73mm | Threaded
|
Cassette | SRAM XG-1295 Eagle | 10-52t |
Chain | SRAM GX Eagle 12-speed |
Front Hub
|
Roval | sealed cartridge bearings | 15x110mm spacing | 28h |
Rear Hub |
Roval DT Swiss 370 | Ratchet LN | SRAM XD driver body | 12mm thru-axle | 148mm spacing | 28h
|
Spokes | DT Swiss Competition Race |
Rims | Roval Traverse 29 Alloy | 30mm inner width | hand-built | 2Bliss Ready |
Tires |
F: Butcher | GRID casing | GRIPTON T7 compound | 29x2.3"
R: Purgatory | GRID casing | GRIPTON T7 compound | 29x2.3"
|
Seatpost |
OneUp | Dropper Post-V2 | MMX lever | 34.9mm (S1:120mm | S2/S3:150mm | S4: 180mm | S5/S6: 210mm)
|
Saddle | Bridge Comp | Hollow Cr-mo rails | 155/143mm |
Color | SATIN DOPPIO / GLOSS DOPPIO / SATIN BLACK |
Weight | N/A |
