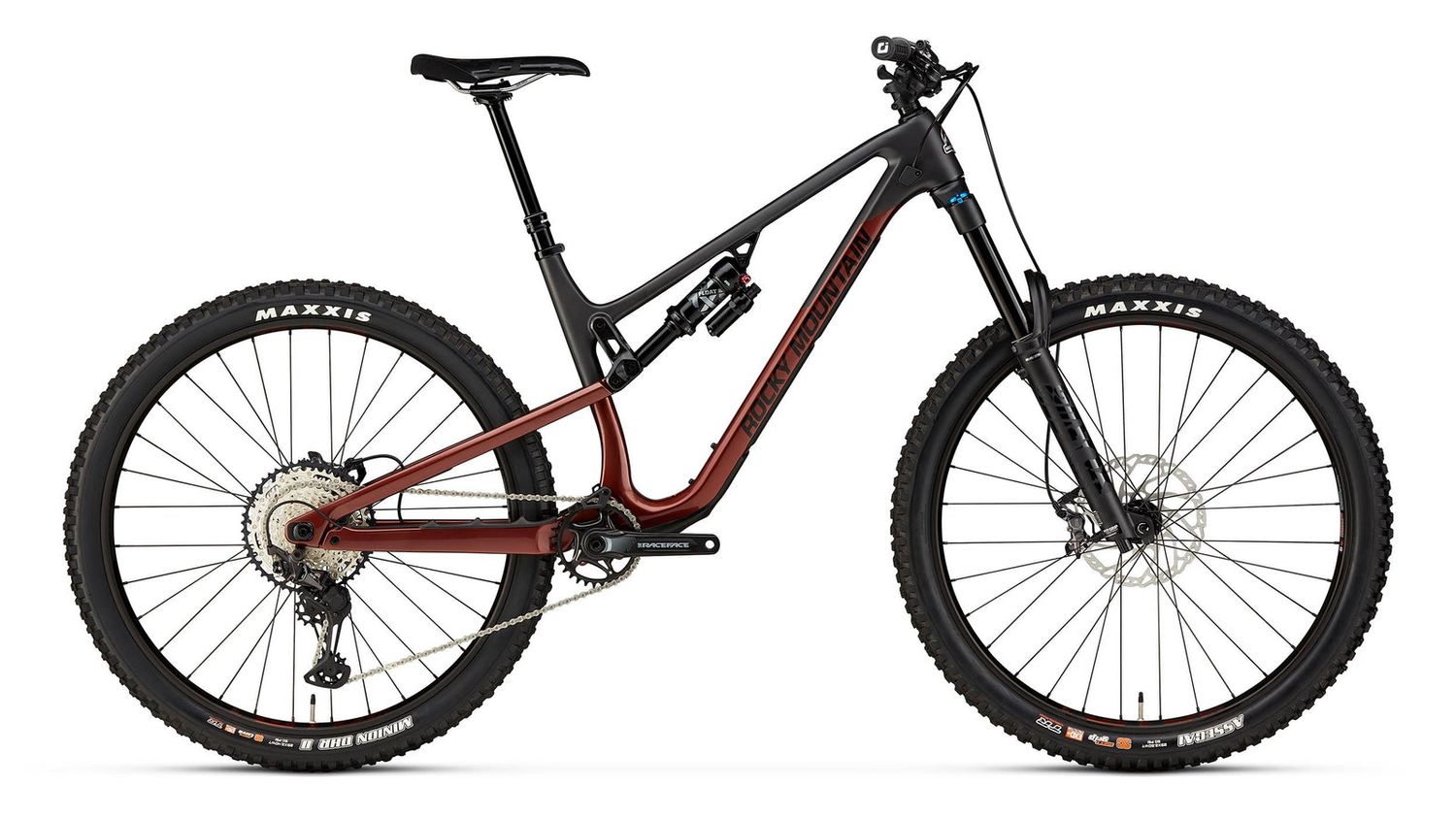

The Altitude Carbon is purpose-built to go fast and demolish steep trails. Fine tune your ride by opting for full 29'' or MX, using the built-in flip chip (sizes MD-XL) or adjust the RIDE-4 with a single Allen key. Its total enduro capabilities can help you secure that “top step” and own those demanding group rides with confidence. The redesigned Altitude Carbon also features internal routing and the new PenaltyBox 2.0 downtube storage. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.
FEATURES
SMOOTHWALL Carbon
Smoothwall carbon uses one of the world’s most sophisticated carbon processes to deliver industry leading stiffness-to-weight, ride quality, and durability.
LC2R Suspension System
LC2R (Low Centre Counter Rotating) is our unique take on a virtual pivot suspension design, delivering a smooth and predictable ride on challenging terrain.
RIDE-4 adjustment system
The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a pair of Allen keys. Four configurations are possible thanks to one rotating chip.
29" / MX
Ability to mullet MD-XL via built-in flip chip. No need to buy a separate link or mount.
Reach Adjust Headsets
Fine tune your ride with center, +/- 5mm offset options.
Size Specific tune
Size Specific Tune ensures that riders of all sizes get the right balance of small-bump compliance, mid-stroke support, and end-stroke progressiveness. Our design team does custom shock tunes based on real world field testing, and adjusts each tune for specific frame sizes.
PenaltyBox 2.0
The new PenaltyBox 2.0 downtube storage (carbon models only) includes generous capacity, custom tool wrap and our rock-solid hinged door system that doubles down as a water bottle mount and built-in concealed AirTag/Tile compartment.
Frame |
SMOOTHWALL Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9 Adjustable Geometry | 2 Position Axle | 160mm Travel | SMOOTHWALL Carbon Rear Triangle |
---|---|
Fork |
Fox 38 Float EVOL GRIP Performance Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Front travel: 170mm
|
Shock |
Fox Float X Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm
Rear travel: 160mm
|
Headset |
FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
|
Stem |
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m |
Handlebar |
Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
Grips |
ODI Elite Pro Lock On
|
Brakes |
Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 180mm |
Shifters |
Shimano SLX
|
Rear derailleur |
Shimano XT
|
Cranks & chainrings |
Race Face Aeffect Cinch | 32T | 24mm Spindle | 170mm Crank Length
|
Bottom Bracket |
Shimano SM-BBMT500
|
Cassette |
Shimano SLX 10-51T |
Chain | Shimano M7100 |
Front Hub
|
Rocky Mountain Sealed Boost 15mm |
Rear Hub |
DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
Spokes |
DT Swiss Competition 2.0/1.8/2.0
|
Rims |
WTB ST Light i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl |
Tires |
F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready
R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
Cushcore Trail Tire Inserts | Lightweight | Tire & Rim Protection
|
Seatpost |
Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 170mm |
Saddle |
WTB Volt Race 142
|
Color |
Another Brick in the Wall / UD Carbon / Black Dog
|
Weight |
32.0 lbs (14.5 kg)
|
