Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

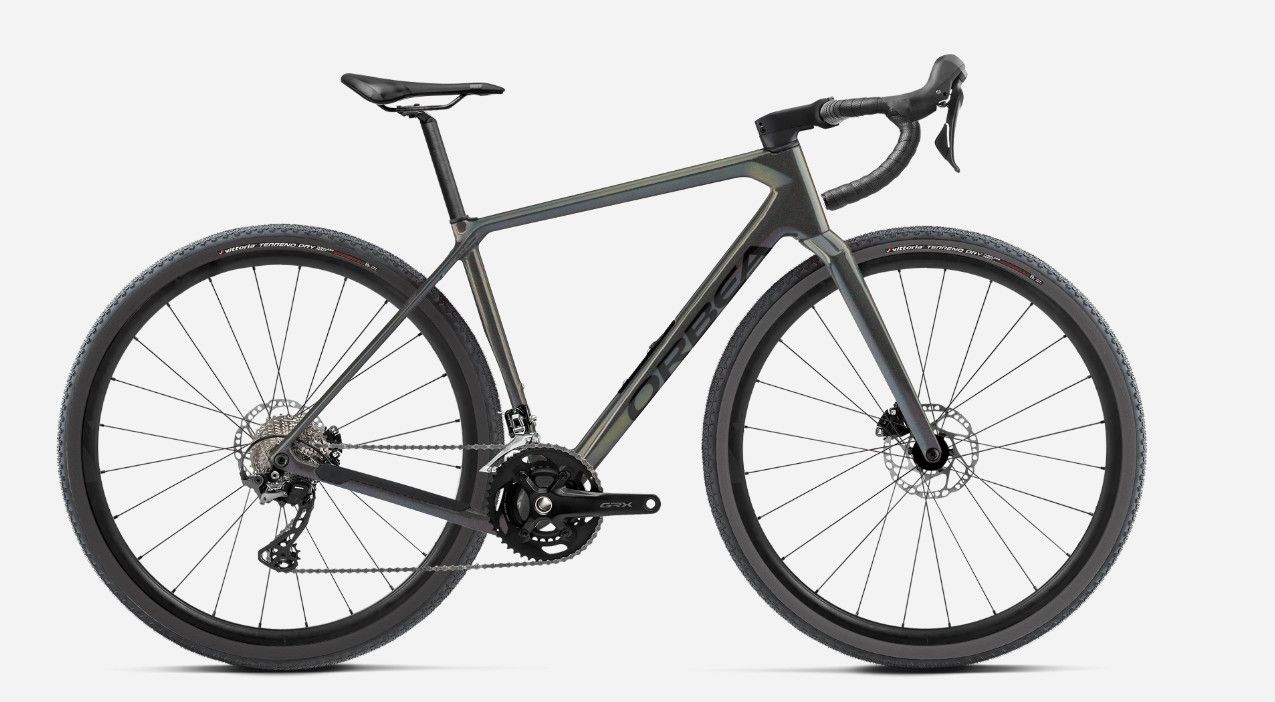

The Orbea Terra M30 Team comes with an OMR carbon frame and an OMR carbon fork. The frame features internal cable routing, thru-axles on the front and rear, a rear rack mount, and has clearance for up to 700 x 45mm or 650b x 50mm tires. The M30Team version of the Terra comes with a Shimano GRX 2x12-speed drivetrain. The gearing is perfect for hill climbing, riding in the dirt, and all-day adventures with all your gear on your bike. Shimano RX410 hydraulic disc brakes provide reliable stopping power in wet and dry conditions. Orbea wheels are paired with Vittoria Terreno Gravel tires that can be set up tubeless for a smoother ride, better traction, and fewer flats. With the SP 0.2 carbon seat post, you'll have a smoother ride over bumpy terrain compared to an aluminum seat post.
* Certain components may differ from specifications
Frame |
Orbea Terra carbon OMR Disc | monocoque construction | HS 1,5" | BB386EVO | powermeter compatible | Thru Axle 12mm x 142mm rear | thread M12x2 P1 | Internal Cable Routing | UDH dropout | LOCKR service box | XXL service box | MMS munti mount system | fender ready |
---|---|
Fork |
Orbea Terra ICR | full carbon | 1-1/8" - 1,5" tappered head tube compatible | Thru axle 12x100mm | thread M12x2 P1 |MMS multi mount system | fender ready |
Steerer tube | FSA 1-1/2" Integrated Aluminium Cup |
Stem |
OC Road Performance RP21 | -6º |
Handlebar |
OC Gravel GR31 | Reach 70 | Drop 110 |
Tape |
Orbea Anti-Slippery/Shock Proof |
Brakes | Shimano RX410 Hydraulic disc |
Shifters |
Shimano GRX RX610 |
Front derailleur |
Shimano GRX RX820 |
Rear derailleur |
Shimano GRX RX820 |
Cranks & chainrings |
Shimano GRX RX610 30x46T |
Cassette |
Shimano HG710 11-36t 12-Speed |
Chain |
Shimano M6100 |
Wheels |
Alloy | Tubeless | 700c | 21c |
Front axle | Orbea Thru Axle 12x100mm M12xP1 Hollow |
Rear axle | Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded |
Tires |
Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c |
Seatpost |
SP 0.2 Carbon | 27.2mm | Setback 20 |
Saddle |
Fizik Terra Argo X7 Aluminium Rail 150mm |
Color |
Rainbow/Black |
Weight | N/A |
