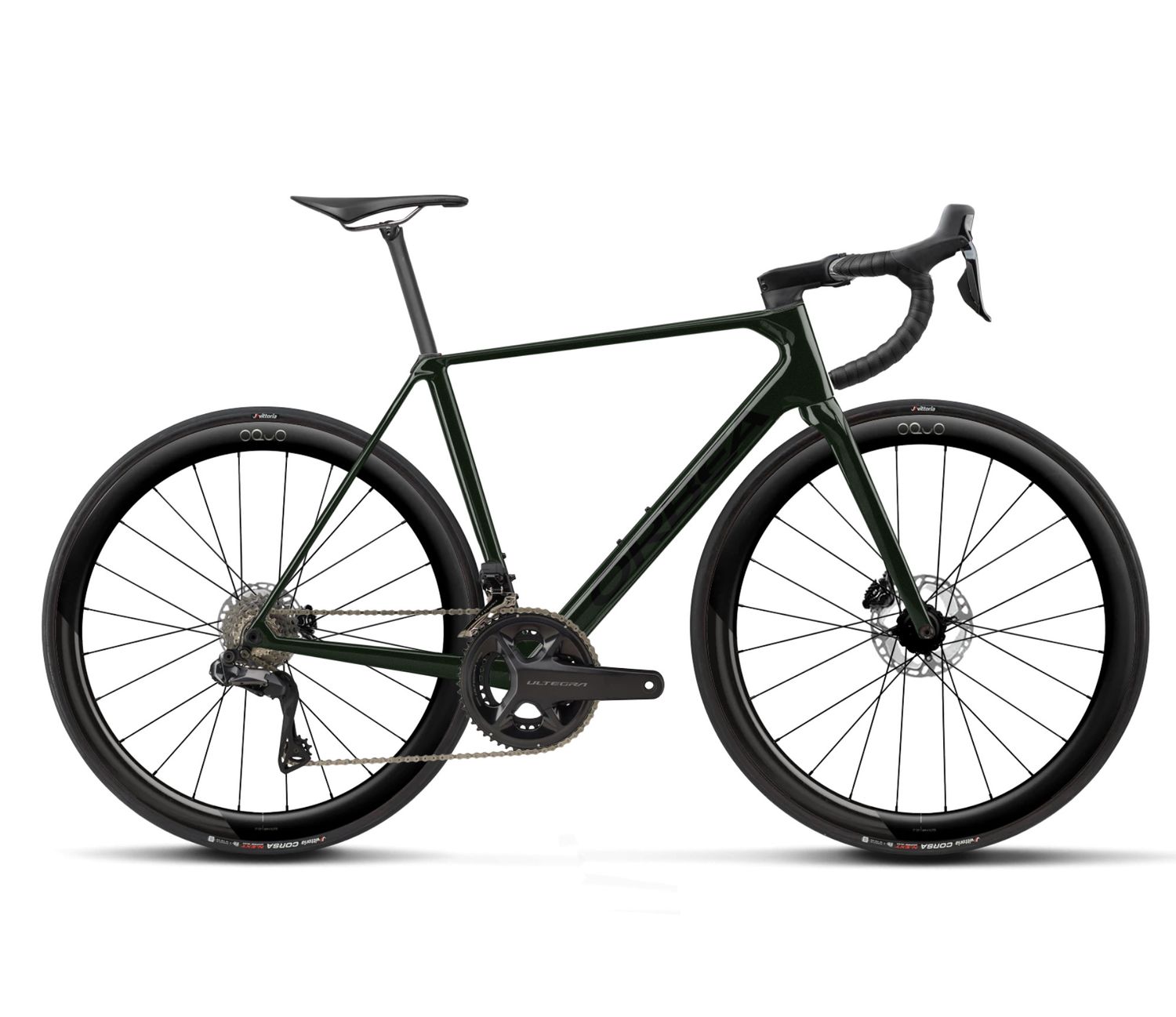

Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top. The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff.
TECHNOLOGY
Powerspine
The lower spine of the frame handles the large majority of torsional and lateral loads.
ICR Plus
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems.
32mm Tire Clearance
Modern road riders have discovered the advantages of bigger tires on rougher surfaces.
Saddle Clamp
The clever saddle clamp is lighter than ever and works perfectly for both round and oval rails.
Seat Clamp
The minimal seat post clamp saves weight and adds a touch of style.
* Custom bike. Certain components may differ from specifications.
Frame |
Orbea Orca carbon OMR 2024 | monocoque construction | HS 1,5" | BB 386mm | powermeter compatible | Rear Thru Axle 12x142mm | thread M12x2 P1 | internal cable routing |
---|---|
Fork |
Orbea Orca OMR ICR 2024 | full carbon | 1-1/8" - 1,5" tappered head tube compatible | Thru axle 12x100mm | thread M12x2 P1 |
Headset |
FSA 1-1/2" Integrated Aluminium Cup |
Stem |
OC Road Performance RP10 | -8º |
Handlebar |
OC Road Performance RP21 Alu SL | Reach 80 | Drop 125 |
Brakes | Shimano R8170 Hydraulic Disc |
Shifters |
Shimano ST-8170 |
Rear derailleur |
Shimano Ultegra Di2 R8150 |
Crankset |
Shimano Ultegra R8100 34x50t
|
Cassette |
Shimano Ultegra R8100 11-30t 12-Speed
|
Chain |
Shimano M8100
|
Wheels |
Oquo Road Performance RP35TEAM
|
Tires |
Vittoria Corsa N.Ext G2.0 Foldable 700x28c
|
Seatpost |
OC Performance XP10-S Carbon | 27.2mm | Setback 20
|
Saddle |
Fizik Vento Antares R7 Alloy Rail 140mm
|
Color |
Metallic Green
|
Weight |
N/A
|
